Aerosol particles are important constituents of the atmosphere. They impact modern society through their effects on visibility, human health, and global climate. In atmospheric and climate science there is considerable interest in understanding the partitioning between gas and particle phase of chemical species. In particular, for semi-volatile substances like NH₄NO₃, the partitioning will strongly influence the particulate matter burden in the troposphere, the radiative properties of the aerosol, the cloud processing and the heterogeneous chemistry.

NH₃ is the dominant volatile base in the atmosphere, with their main sources stemming from combustion, fertilizers and biological decay^[1]. By reacting with H₂SO₄, HNO₃ and HCl, ammonium salts such as (NH₄)₂SO₄, NH₄NO₃ and NH₄Cl are formed and account for the predominant inorganic components of atmospheric aerosols^[2]. Unlike most of the other hygroscopic salts found in the atmosphere, NH₄NO₃ is a salt with a relatively high vapor pressure. Particles containing NH₄NO₃ are in equilibrium with gaseous NH₃ and HNO₃ and the partitioning between particle and gas is a strong function of temperature and relative humidity^[3]. In order to predict this partitioning, it is crucial to know the vapor pressure of the NH₄NO₃ under ambient conditions.

Many techniques have been developed to measure the evaporation of monodisperse NH₄NO₃ under different RHs by continuously and rapidly removing gaseous NH₃ and HNO₃ from aerosols. Hu, et al.^[4] investigated the effects of RH and particle size on evaporation of NH₄NO₃ aerosols by a self-assembled hygroscopic tandem differential mobility analyzer (H-TDMA) system. They found that the evaporation of NH₄NO₃ particle less than 50 nm was significantly promoted while RH increased below the DRH. The proposed mechanism suggested that the increase of RH alters the chemical equilibrium, i.e., NH₄NH_{3 (s)}⇆NH_{3 (g)}+HNO_{3 (g)}, by converting NH₃ (g) and HNO₃ (g) into NH₃· nH₂O and HNO₃· nH₂O, which accelerated the evaporation of NH₄NO₃ (s). Chien, et al.^[5] determined the total vapor pressure of NH₄NO₃ over the range of 313~360 K, and the values were 8.073× 10^-31.057 Pa. The vapor pressure was determined by the torsion and effusion method, and vapor composition was determined by effusion-beam mass spectrometry. Hong, et al.^[6] obtained the effective saturation vapor concentration for NH₄NO₃ field measurements using a volatility tandem differential mobility analyzer (VTDMA) with a kinetic evaporation model. According to the saturation vapor concentration obtained for NH₄NO₃, they concluded that NH₄NO₃ can be considered as semi-volatile compounds and the value of vapor pressure was 2.6× 10^-3 Pa. Zardini, et al.^[7] described how a time series of optical resonance spectra of an evaporating, non-spherical, irregular aerosol particle levitated in an electrodynamic balance exhibited patterns which were related to its evaporation kinetics, and the vapor pressures of solid NH₄NO₃ from evaporating particles over the range of 278.2~303.15 K were (5.52± 1.93)× 10^-5~(2.03± 0.71)× 10^-3 Pa. However, the saturated vapor pressure of NH₄NO₃ at different RH at room temperature has not been found.

In this paper, we use a new technique for exploring the equilibrium properties of ammonium nitrate aqueous aerosol particles using optical tweezers coupled with cavity-enhanced Raman spectroscopic. The particle is confined in three dimensions, and can be held indefinitely by the optical forces. Rather than attempting to isolate the gas-particle partitioning of water and the semi-volatile compounds in independent measurements, the technique is instead derived from exploiting the intimate coupling between the two^[8]. Simultaneous and accurate measurements of the refractive index and size of aqueous aerosol can allow parallel estimations of the change in composition as well as size, providing concurrent information on the gas-particle partitioning of both the semi-volatile compounds and water. In this work, the vapor pressures of NH₄NO₃ aerosols (2~10 μ m) are measured from 44.8% to 80% RH using an optical tweezers coupled with cavity-enhanced Raman spectroscopic. The effects of RH on the evaporation of NH₄NO₃ aerosols are discussed.

The aerosol optical tweezers setup has been comprehensively described in previous publications and we only briefly summarize the key elements^{[9, 10]}. Fig.1 shows a schematic diagram of the single gradient force optical trap used in this study. The optical trap is formed by focusing the beam (532 nm, 200 mW) from an argonion laser (Opus 4 W+mpc6000 power supply ) through an Olympus UIS2 PlanCN 100× oil immersion objective (1.25 N.A.). A blue LED centered at 455 nm is adopted as the illumination source for bright-field imaging of the trapped droplets received by a camera (Watec, 1/3 in., model 231S2). Droplets of 1 mol· L^-1 NH₄NO₃ solution are introduced into the sample cell and a single droplet from the cloud is captured. The RH of the gas phase is controlled from dry conditions (< 5% RH) to high RH (> 80%) by mixing flows of dry and humidified nitrogen. The flow rates are controlled by two independent mass flow controllers (Alicat Scientific No.21-1-08-1-1-KM0410). The combined gas flow introduced into the cell is kept constant at 0.20 L· min^-1. The RH and the temperature of the combined gas flow are measured by RH-T detectors (Center 313) before the cell and in the outflow from the cell. The uncertainty of RH determination is ± 2.5%. Particles are imaged by brightfield microscopy. Inelastic backscattered light collected by the micro-scope objective is imaged into a 0.5 m focal length spectrograph, dispersed by a 1 200 g· mm^-1 grating, and the Raman spectrum recorded by a CCD with a time resolution of 1 s and a spectral dispersion of 0.04 nm per pixel. In addition to the familiar spontaneous stokes bands shifted from the excitation wavelength, the Raman spectrum provides a unique fingerprint of droplet size and refractive index (RI) through the pattern of resonant modes superimposed on the spontaneous band at wavelengths commensurate with whispering gallery modes. The size, RI and dispersion in RI can be retrieved with high accuracy from this fingerprint by comparison with Mie scattering calculations^{[11, 12]}.

Fig.1

	Figure Option ViewDownloadNew Window

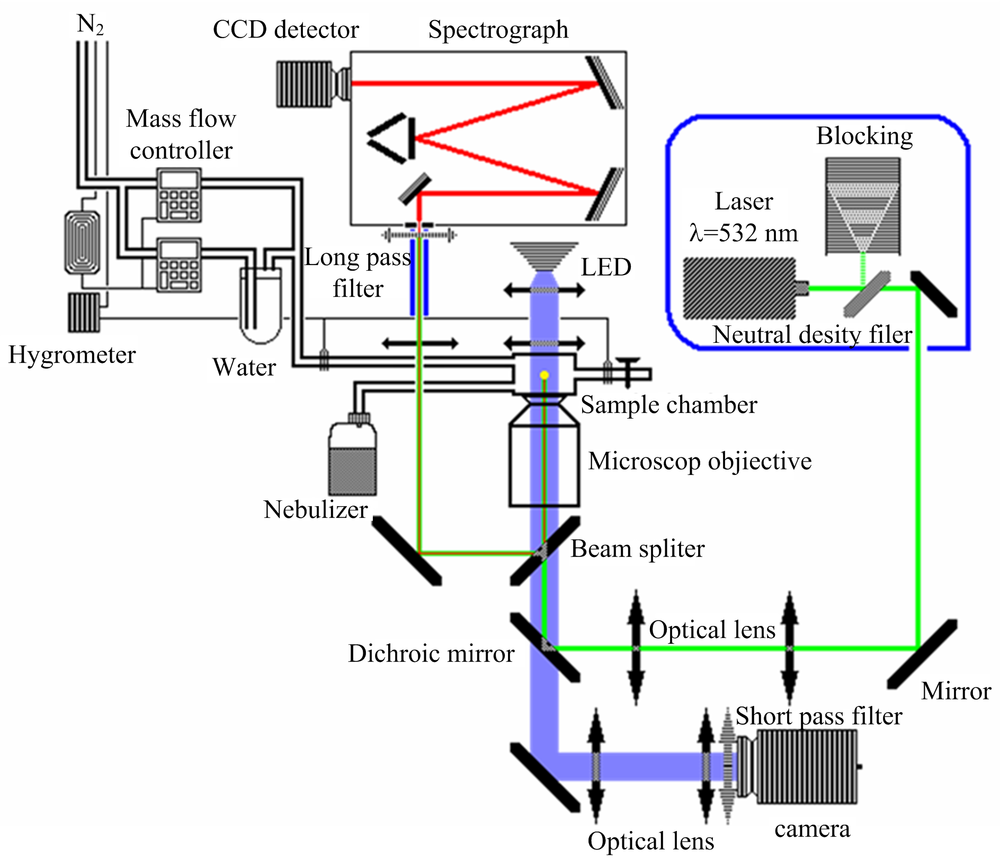

	Fig.1 Schematic diagram of experimental set-up used for single droplet optical tweezers

To explore the evaporation kinetics of water and NH₄NO₃, the aqueous droplets of NH₄NO₃/H₂O at different constant RHs are optically trapped by optical tweezers. A typical cavity-enhanced Raman spectra (CERS) example of an aqueous NH₄NO₃/H₂O droplet at 67% RH is shown in Fig.2(a). The time evolution of the wavelengths of the WGM resonant modes on the OH band for the NH₄NO₃/H₂O droplet at 67% RH is shown in Fig.2(b). During this process, we can find that the Raman peaks are shifted to the lower wavelength during acquisition time when the RH is constant at 67%, and such phenomenon is mainly due to the evaporation of ammonium nitrate. Changes in droplet size and refractive index are shown in Fig.3. The decrease of the radius reflects the volatility of the droplet.

Fig.2

	Figure Option ViewDownloadNew Window

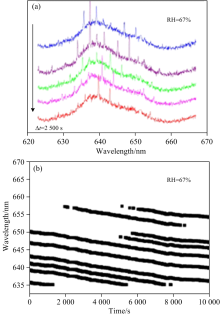

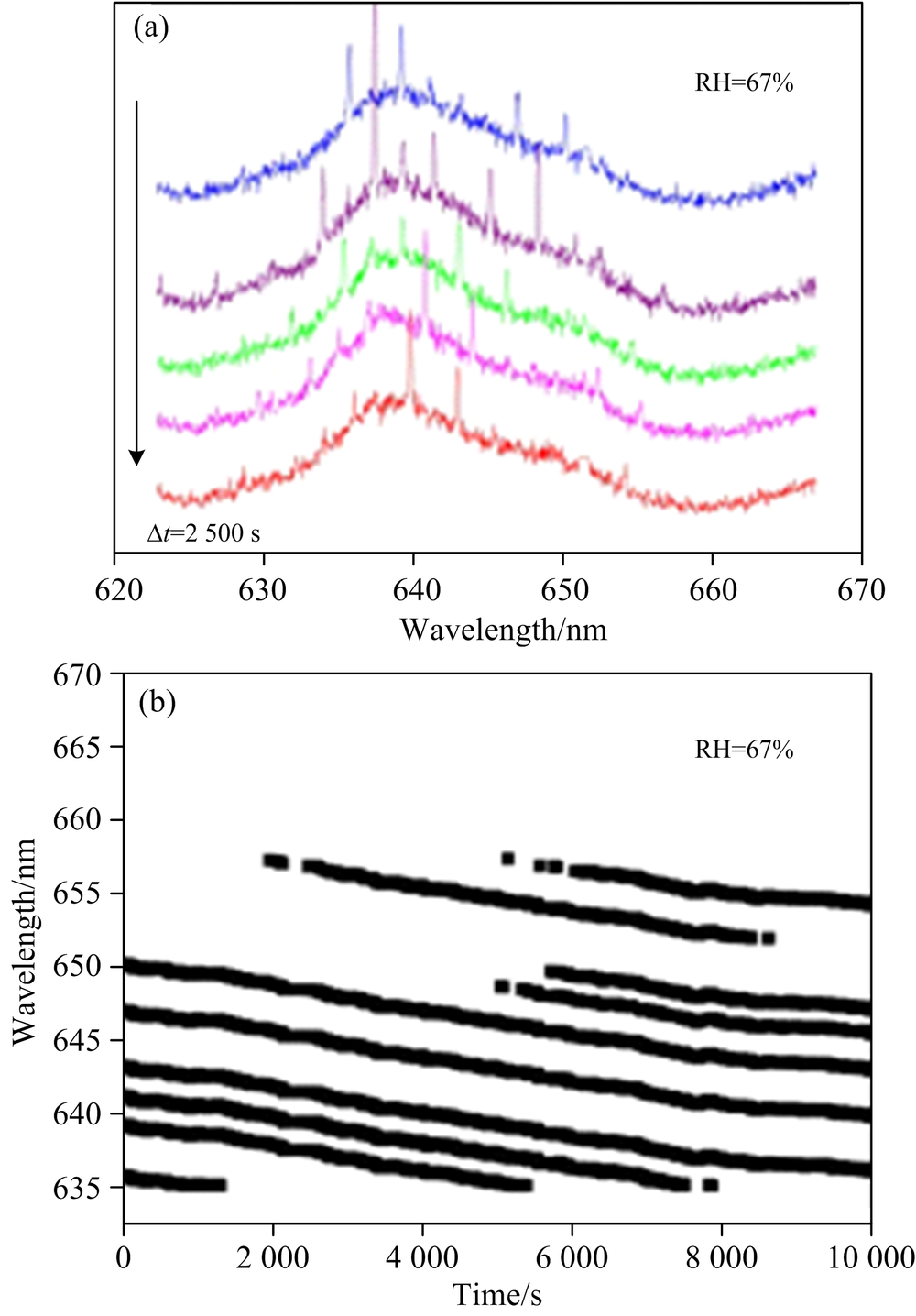

	Fig.2 (a) CERS of NH4NO3/H2O droplet at 67% RH; (b) The time evolution of the wavelengths of the WGM resonant modes on the OH band for the NH4NO3/H2O droplet at 67% RH

Fig.3

	Figure Option ViewDownloadNew Window

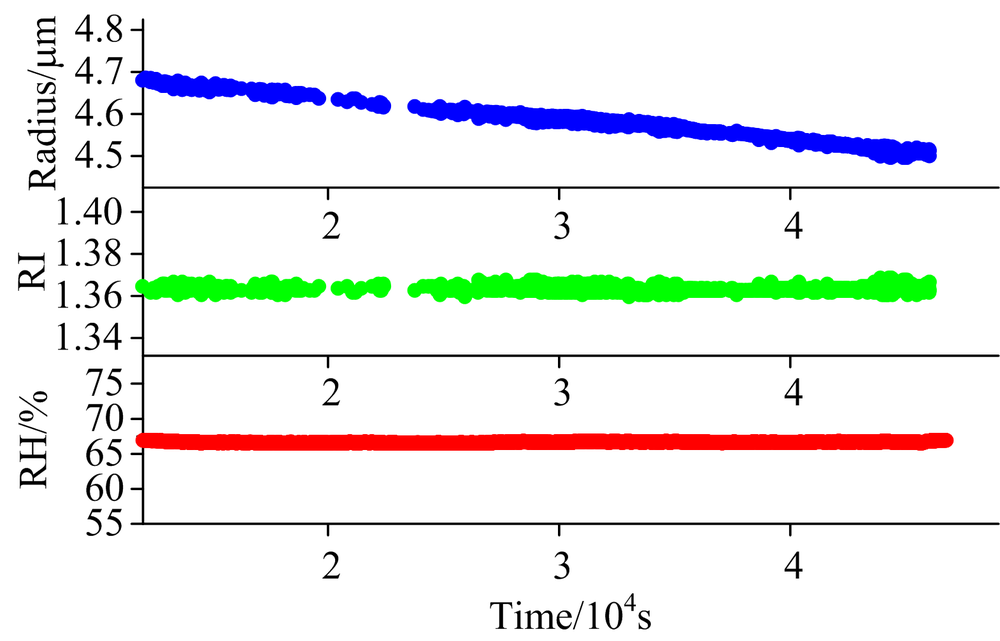

	Fig.3 Time-dependent NH4NH3/H2O droplet size (blue line), RI (green line) and RH (red line) at 298 K in the laser tweezers apparatus are presented

The evaporation experiments are repeated at other constant RHs and the same analysis as described above is performed. The effective pure component vapor pressure of ammonium nitrate can be estimated from the rate of change in the radius-squared of an aqueous droplet (r²) held at a constant RH with time (t) due to the evaporation of ammonium nitrate. Since an evaporating of ammonium nitrate particle dissociates in ammonia and nitric acid through the reaction: NH₄NH₃ (l)⇆NH₃ (g) + HNO₃ (g), the vapor pressure can be determined from radius change via the Maxwell equation^{[7, 13]}

p=pNH3+pHNO3=-12dr2dtRTρANFiMANχifi1DNH3+1DHNO3(1)

where M_AN is the molecular mass of ammonium nitrate, DNH3and DHNO3are the diffusivities of the two species in the ambient air, R is the ideal gas constant, T is the temperature, f_i is the activity coefficient, ρ _AN is the density of the droplet and F_i is the mass fraction of ammonium nitrate in the droplet. Diffusivities for HNO₃ and NH₃ are taken from Xue et al.^[14] and Massman^[15].

The effective pure component vapor pressures of NH₃NO₃ at different constant RHs are calculated according to equation (1), and the results are presented in Fig.4. The effective pure component vapour pressures of ammonium nitrate are (1.67± 0.24)× 10^-3, (1.82± 0.19)× 10^-3, (2.91± 0.13)× 10^-3, (3.5± 0.28)× 10^-3, (4.59± 0.22)× 10^-3 and (6.64± 0.3)× 10^-3 Pa, when the RH is 80%, 73%, 68%, 57.3%, 55.4%, 44.8% respectively. The vapour pressure of ammonium nitrate is of the same magnitude as in previous studies^{[5, 6, 16]}. In the range of RH studied here, the saturated vapor pressure of ammonium nitrate increases with the decrease of RH. This shows that the lower the RH is, the easier the ammonium nitrate evaporates.

Fig.4

	Figure Option ViewDownloadNew Window

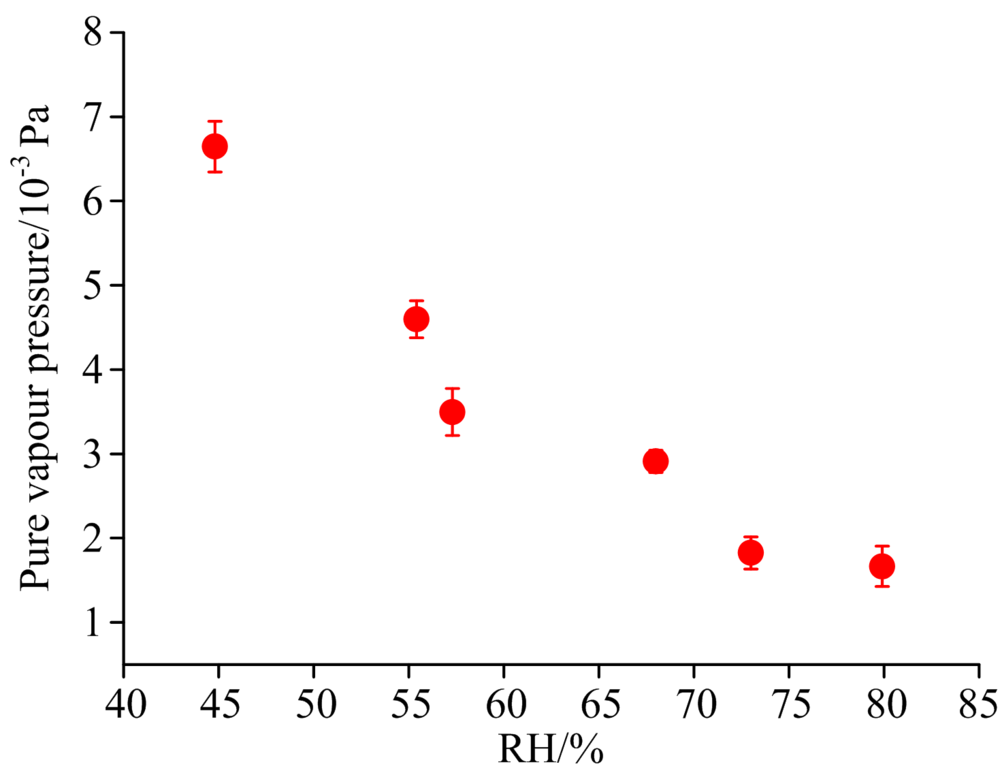

	Fig.4 Pure vapor pressures of NH4NO3at different constant RHs

The volatilizing flux of NH₃NO₃ can be estimated from the rate of change in the volume of droplets and the concentration of NH₃NO₃ (inferred from refractive index). The calculation formula is as follows:

F=43π(r03-r3)c0/4πr2t(2)

where r₀ is initial radius, c₀ is the concentration of NH₃NO₃, r is the real-time radius.

Volatilizing flux of the ammonium nitrate at each constant RH (estimated from equation (2)) are shown in Fig.5. The volatile flux of ammonium nitrate is in the range of (4.01± 0.79)× 10^-7(3.32± 0.77)× 10^-8 mol· (s· m²)^-1.

Fig.5

	Figure Option ViewDownloadNew Window

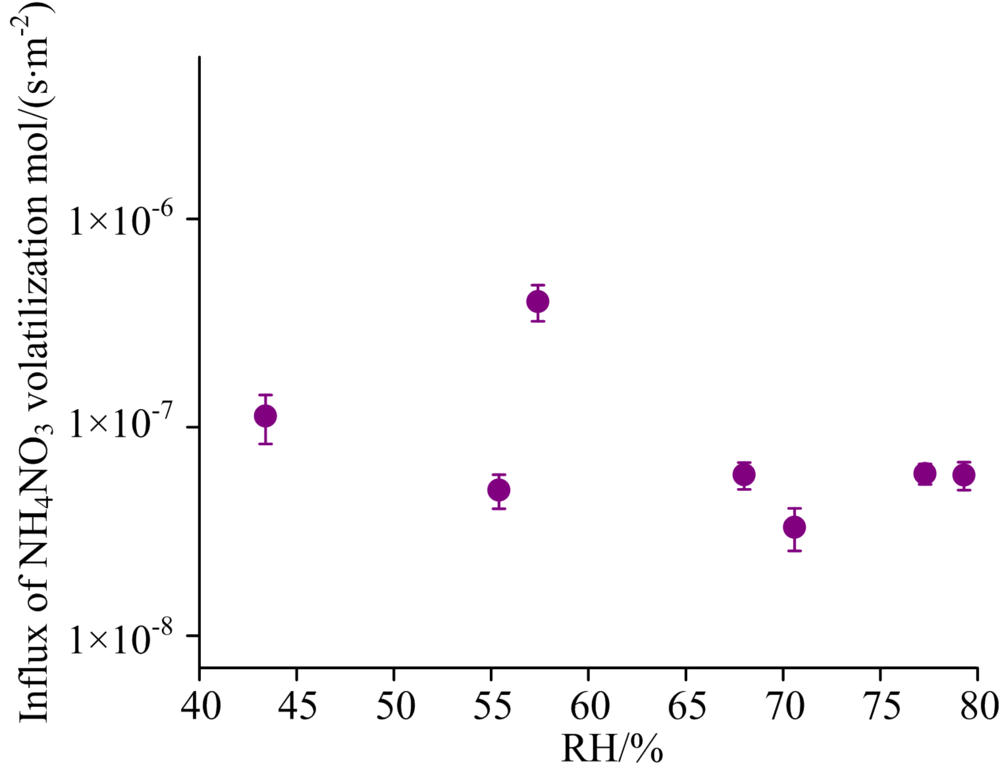

	Fig.5 Volatilizing fluxes of NH4NO3 at different constant RHs

We report the equilibrium properties of NH₄NO₃ aqueous aerosol particles using optical tweezers coupled with cavity-enhanced Raman spectroscopic. The vapor pressures at different constant RHs are calculated according to the Maxwell equation and the values are (1.67± 0.24)× 10^-3, (1.82± 0.19)× 10^-3, (2.91± 0.13)× 10^-3, (3.5± 0.28)× 10^-3, (4.59± 0.22)× 10^-3 and (6.64± 0.3)× 10^-3 Pa when the RH is 80%, 73%, 68%, 57.3%, 55.4%, 44.8% respectively. These values are of the same magnitude as that in previous studies. With decreasing RH, the vapor pressure of NH₄NO₃ increases, indicating that the low RH accelerates the evaporation of NH₄NO₃. In addition, the volatile fluxes of ammonium nitrate are also calculated at different RHs and they are in the range of (4.01± 0.79)× 10^-7(3.32± 0.77)× 10^-8 mol· (s· m²)^-1.
