基于PROSPECT模型的蔬菜叶片叶绿素含量和SPAD值反演

引用本文

雷祥祥, 赵静, 刘厚诚, 张继业, 梁文跃, 田佳灵, 龙拥兵. 基于PROSPECT模型的蔬菜叶片叶绿素含量和SPAD值反演[J]. 光谱学与光谱分析, 2019,39(10): 3256-3260.
LEI Xiang-xiang, ZHAO Jing, LIU Hou-cheng, ZHANG Ji-ye, LIANG Wen-yue, TIAN Jia-ling, LONG Yong-bing. Inversion of Chlorophyll Content and SPAD Value of Vegetable Leaves Based on PROSPECT Model[J]. Spectroscopy and Spectral Analysis, 2019,39(10): 3256-3260.
Doi:10.3964/j.issn.1000-0593(2019)10-3256-05 复制到剪切板

Permissions

光谱学与光谱分析所有

基于PROSPECT模型的蔬菜叶片叶绿素含量和SPAD值反演

雷祥祥¹, 赵静¹, 刘厚诚², 张继业², 梁文跃¹, 田佳灵², 龙拥兵^1,^*

1. 华南农业大学电子工程学院, 广东广州 510642

2. 华南农业大学园艺学院, 广东广州 510642

*通讯联系人 e-mail: yongbinglong@126.com

作者简介: 雷祥祥, 1994年生, 华南农业大学电子工程学院研究生 e-mail: ilei00@foxmail.com

收稿日期: 2018-08-16 接受日期: 2018-12-15

基金: 广东省重点领域研发计划项目(2019B020219002, 2019B020214005), 广东省2019年省级乡村战略振兴专项(粤财农(2019)73号), 国家自然科学基金项目(11774099)资助

摘要

叶绿素含量是衡量植物营养和病虫害发生情况的重要指标。传统的分光光度法对植物叶片破坏性较大且无法实时、快速、无损地获取叶绿素含量。新兴的利用叶绿素仪测量叶绿素相对含量(以下简称SPAD值)的方法不能定量获取实际含量。光学辐射传输模型PROSPECT从生物物理、化学的角度以及能量传输的过程出发, 定量描述了叶片色素、水分、结构参数等对叶片反射光谱的影响。因此, 提出利用PROSPECT模型同时反演蔬菜叶片叶绿素含量和SPAD值, 实时、快速、无损、定量获取植物叶片叶绿素的含量。第一, 多次测量三种蔬菜叶片的反射光谱, 并用叶绿素仪测量SPAD值。然后, 预处理光谱数据, 获得平均反射率光谱。第二, 以欧式距离为评价函数, 利用PROSPECT模型对实测反射率光谱进行拟合。拟合过程中三种蔬菜欧式距离最大为0.008 9, 最小为0.006 4, 平均为0.007 5, 表明该模型能够很好地拟合蔬菜叶片的反射率光谱。第三, 根据拟合结果, 反演叶绿素含量和透射率光谱, 再根据透射率光谱获取叶片在940和650 nm波长处的光透过率, 计算叶片的反演SPAD值。第四, 建立反演叶绿素含量、反演SPAD值与实测SPAD值的关系模型。结果表明: (1)利用该模型反演得到的叶绿素含量值与实测SPAD值有较好的线性关系, 其关系模型为: y=1.463 3 x+16.374 3, 两者相关系数为0.927 1, 模型的决定系数为0.862, 均方根误差为2.11; (2)利用该模型反演得到的SPAD值与实测SPAD值之间线性关系较好, 其关系模型为: y=0.986 9 x-0.668 3, 两者相关系数为0.845 1, 模型的决定系数为0.714 3, 均方根误差为3.380 2。研究表明, 通过测量植物叶片的反射率光谱, 利用PROSPECT模型可以无损、定量地获取蔬菜叶片的叶绿素含量和SPAD值。该方法可推广至其他植物的叶绿素测量和实时监测, 为变量施肥、精准种植提供可靠的数据支持。研究结果对蔬菜生长态势的无损监测具有重要的意义。

关键词: 高光谱; 蔬菜叶片; 叶绿素含量; SPAD值; 反演

中图分类号:O657.3 文献标志码:A

Inversion of Chlorophyll Content and SPAD Value of Vegetable Leaves Based on PROSPECT Model

LEI Xiang-xiang¹, ZHAO Jing¹, LIU Hou-cheng², ZHANG Ji-ye², LIANG Wen-yue¹, TIAN Jia-ling², LONG Yong-bing^1,^*

1. School of Electronic Engineering, South China Agricultural University, Guangzhou 510642, China

2. School of Horticulture, South China Agricultural University, Guangzhou 510642, China

*Corresponding author

Abstract

Chlorophyll content is an important indicator for evaluation of plant nutrition and the occurrence of the pests. The traditional spectrophotometry causes damage to plant leaves and can not be used to obtain the chlorophyll content in a real time, fast and non-destructive way. The chlorophyll meter is recently developed to measure the relative content of chlorophyll (referred to as SPAD value). But this method cannot be used to quantitatively obtain the actual content. The optical radiation transmission model PROSPECT can quantitatively describe the effects of leaf pigment, moisture and structural parameters on the reflection spectrum of the leaves with careful consideration of the biophysics, chemistry and the process of energy transfer in the leaves. In the paper, therefore, this model is used to simultaneously inverse the chlorophyll content and SPAD value of vegetable leaves, and obtain the chlorophyll content of plant leaves real-timely, quickly, non-destructively and quantitatively. First, the reflection spectra of the leaves for three vegetables were measured several times, and the SPAD values of these leaves were measured with a chlorophyll meter. Then, the spectral data were preprocessed to obtain the average reflectance spectrum. Second, the averaged reflectance spectra were fitted by the PROSPECT model with the Euclidean distance as the evaluation function. The maximum distance of the three vegetables in the fitting process was 0.008 9, the minimum was 0.006 4, and the average was 0.007 5. Such a low Euclidean distance indicated that the model could well fit the reflectance spectrum of vegetable leaves. Thirdly, according to the fitting results, the chlorophyll content and the transmittance spectrum were inversed, and the inversed SPAD value of the leaves was calculated with the light transmittance of the leaves at 940 and 650 nm as input parameters. Fourth, this paper established a relationship model between the inversed chlorophyll content, the inversed SPAD value and the measured SPAD value. Two main results were obtained: (1) the chlorophyll content obtained by the model has a good linear relationship with the measured SPAD value and the relationship model is y=1.463 3 x+16.374 3. The correlation coefficient between them is 0.927 1. The coefficient of determination of the model is 0.862 and the root mean square error is 2.11. (2) A good linear relationship of y=0.986 9 x-0.668 3 is obtained for the inversed SPAD value and the measured SPAD value. The correlation coefficient between them is 0.845 1.The coefficient of determination of the model is 0.714 3 and the root mean square error is 3.380 2. The research shows that the PROSPECT model can be used to obtain the chlorophyll content and SPAD value of vegetable leaves nondestructively and quantitatively with the measured reflectance spectrum of plant leaves as input parameters. This method can be extended to other plants for chlorophyll measurement and real-time monitoring and can provide reliable data support for variable rate fertilization and precision planting. The results presented in this paper can be applied to monitor the growth of the vegetables nondestructively.

Keyword: Hyperspectral; Vegetable leaf; Chlorophyll content; SPAD value; Inversion

文章图片

引言

绿色蔬菜富含蛋白质、碳水化合物、维生素以及各种微量元素, 能够对人类健康产生较大影响。其中, 叶绿素含量是植物光合作用能力和营养信息表达的一个重要指标, 广泛用于监测蔬菜的健康状况^{[1, 2]}。传统的植物叶片叶绿素含量检测方法主要为分光光度法。该方法应用较为广泛, 被科研工作者用于测定各类植物叶片中叶绿素a、叶绿素b的含量。例如, Cui等^[3]利用改进的分光光度法测定水体中叶绿素a, 取得了比传统方法更准确的测量结果。但该方法为化学方法, 会对植物叶片产生破坏, 且检测过程还含有丙酮等有害试剂。

SPAD叶绿素相对浓度测量仪利用叶片在940和650 nm波长处的光透过率之比来计算叶绿素相对含量, 可以快速检测叶片叶绿素相对含量。例如, Hu等^[4]利用SPAD仪确定了黄瓜氮素诊断的最佳叶位, 并表明SPAD值和叶片含氮量之间存在显著的相关性。但该方法不足之处在于不能定量地检测叶绿素含量。

近年来, 高光谱技术的发展为检测植物的健康状况提供了新的方向。 Ding等^[5]提取7个能反映叶绿素含量变化的最优参量, 建立了温室番茄叶片叶绿素含量预测模型, 该模型具备较好的预测能力。 Li等^[6]利用红边区域特性, 提出了一种新的提取反射光谱的方法, 能很好的估算水稻和小麦叶片的叶绿素含量。 Lu等^[7]利用生长季节樱桃叶的多种光谱变量, 评价了高光谱遥感在估算叶绿素a、 b和叶绿素a+b浓度的能力, 实验结果的均方根误差较小。然而, 这些模型易受到植物叶片结构和观测角度等因素的影响。 Baret等^[8]建立光学辐射传输模型PROSPECT, 该模型定量描述了叶片色素、水分、结构参数等因素对叶片反射光谱的影响, 可以定量获取叶片内部各种成分的含量。例如, Jiang等^[9]比较植被指数与四个版本的PROSPECT模型反演性能, 发现两者性能类似, 但PROSPECT能够提供表面反射率和叶片内部结构等附加特性。 Sun等^[10]通过PROSPECT模型研究了采用32个通道的HSL系统估算叶片叶绿素含量的可能性, 结果表明PROSPECT模型适用于叶绿素含量的反演。目前, 利用光学辐射传输模型PROSPECT模型同时反演植物叶片叶绿素含量、 SPAD值的相关研究则比较少。本研究将利用该模型拟合蔬菜叶片的反射率光谱, 进而反演叶片的叶绿素含量和SPAD值, 在此基础上建立反演叶绿素含量、 SPAD值与实测SPAD值的关系模型。

1 实验部分

1.1 光谱数据采集

本研究以华南农业大学设施园艺实验基地栽培的绿色奶油生菜、罗马生菜、广府35菜心为研究对象。在实验基地采摘奶油生菜、罗马生菜、广府35菜心后, 立即送往实验室测量光谱数据。在光谱数据测量过程中, 首先利用日本MINOLTA公司的SPAD-502叶绿素检测仪测量蔬菜叶片的SPAD值, 然后摘取叶片, 利用光纤光谱仪(Flame-S-VIS-NIR-ES型, 海洋光学)测量叶片同一位置的反射光谱。具体测量方法如下, 首先扫描无光环境下仪器噪声光谱B₁, 然后打开光源, 扫描白色标准板的反射光R₀; 然后扫描植物叶片的反射光R₁, 测量叶片的背景噪声B₂, 植物叶片的反射率光谱可表示为^[11]

$R = \frac{R_{1} - B_{1}}{R_{0} - B_{2}}$ (1)

1.2 光谱模拟

1.2.1 PROSPECT模型

本研究采用PROSPECT-D拟合植物的反射率光谱。该模型预测不确定性较小, 能实现对植物叶片叶绿素、胡萝卜素、花青素等的高分辨率监测; 实验表明, 该模型版本优于之前版本, 能在可见光波段以最小的误差模拟真实叶片的光学性质, 在近红外波段、短波红外波段的误差和其他版本类似^[12]。该模型定量描述了植物叶片反射率光谱、透过率光谱与模型参数N(结构参数)、 C_ab(叶绿素含量)、 C_car(胡萝卜素含量)、 C_anth(花青素含量)、 C_brown(棕色物质含量)、 C_w(等效水含量)、 C_m(干物质含量)之间的关系。

1.2.2 PROSPECT模型敏感度分析

敏感度可以描述某一变量以相同步长变化的过程中对模型输出结果的影响程度。以X₀为参考点, 定义敏感度计算公式为^[13]

$F' = \overset{n}{\sum_{pert = 1}} \frac{(ρ_{0_{j}} - ρ_{per t_{j}})}{ρ_{0_{j}}}$ (2)

式中 $ρ_{0_{j}}$ 和 $ρ_{per t_{j}}$ 分别为初始参考点X₀和X₀+Δ _X处波长j对应的叶片的反射率。计算PROSPECT模型每个参数的敏感度时, 相对于X₀, 取适当的Δ _X为步长, 其他参数保持不变。计算不同参数的灵敏度时, Δ _X均以相等的相对间隔取值^[14]。本论文中, Δ _X采用初始参考点X₀的0.1倍进行取值。通过PROSPECT模型参数的敏感性计算可以分析各种生化参数对叶片光谱的影响程度, 同时结合模型参数参考范围确定光谱模拟时各生化参数的范围。

1.2.3 叶片叶绿素含量和SPAD值反演

为了反演叶片的叶绿素浓度和SPAD值, 本研究采用Nelder-Mead单纯形直接搜索算法来拟合反射率光谱。该算法是一种局部搜索算法, 在每次迭代过程中, 求出一个较好的探索点, 除去最差的点, 并用探索点来代替, 形成新的单纯形^[15]。通过该算法对模型输入参数的不断调整优化, 可以获得最优输入参数。拟合过程中, 采用模拟值与实测值的欧式距离作为评价函数。欧式距离是常用的距离计算方式, 衡量多维空间中两点之间的绝对距离。其反映了空间中样本之间的不相似性^[16], 适用于计算本研究中光谱拟合的准确性。

$D = \overset{N}{\sum_{i = 1}} \sqrt[]{(r_{1 i} - r_{2 i})^{2}}$ (3)

其中r₁_i为在当前参数矢量下PROSPECT模型模拟的光谱反射率向量, r₂_i为实测光谱反射率。

根据最优拟合结果, 由最佳输入参数获得叶片的叶绿素含量, 由模型输出获得叶片的透过率光谱。根据透过率光谱, 利用下式计算植物叶片的SPAD值^[17]

$SPAD = K \times \lg (T_{1} / T_{2}) + C$ (4)

其中K和C为常数, T₁为叶片在940 nm透过率, T₂为叶片在650 nm处的透过率。

2 结果与讨论

2.1 光谱模拟结果

2.1.1 光谱反射率预处理

本文测量了绿色奶油生菜、罗马生菜、广府35菜心三种蔬菜的反射率。每种蔬菜随机的选择10个叶片, 每片叶取12个采样点测光谱, 因此共360个光谱数据。为降低测量的随机误差, 需要对同一叶片测得的不同点的光谱数据进行光谱平均。首先使用式(1)对测得的每种叶片光谱进行预处理, 并计算同一叶片的平均光谱。预处理后的蔬菜平均反射率光谱如图1所示。

	Figure Option View Download New Window

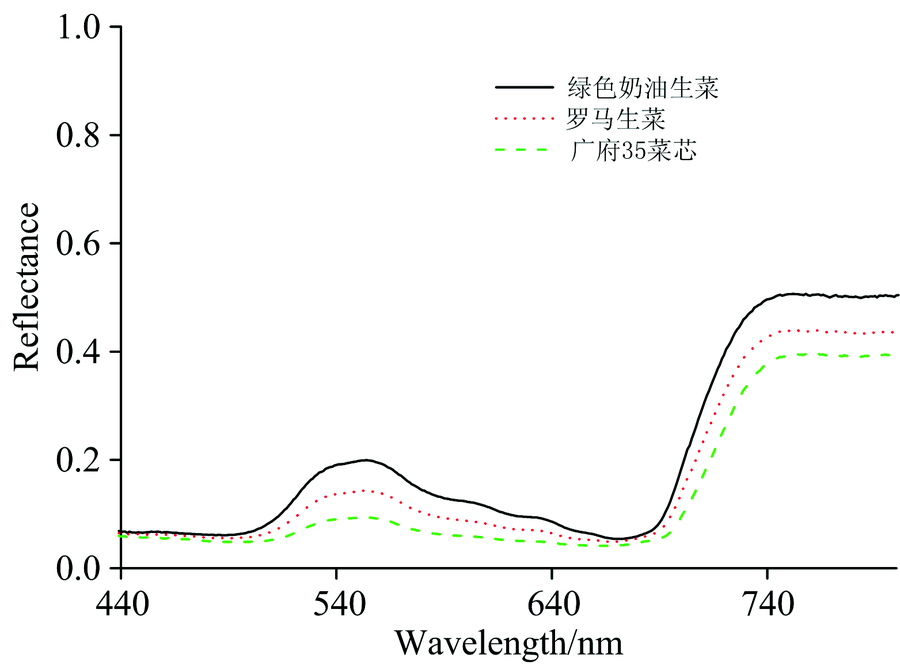

	图1 蔬菜叶片平均光谱反射率Fig.1 Average spectral reflectance of vegetables

2.2 模型敏感度分析与光谱拟合结果

敏感度分析、光谱模拟的相关参数如表1所示, 计算结果如图2所示。从该图可以看出: 可见光波段(400~780 nm), 叶绿素含量、结构参数、胡萝卜素含量影响较大; 近红外短波波段(780~1 100 nm), 结构参数、干物质含量影响较大; 近红外长波波段(1 100~2 500 nm), 水含量、结构参数、干物质含量影响较大。根据敏感度分析可知, C_w, C_m, C_anth, C_brown对400~780 nm波段的反射率光谱影响很小。根据敏感度分析结果, 结合PROSPECT模型自带的参数范围以及数据拟合情况, 设置光谱模拟的主要参数范围, 如表1所示。

表1 敏感度分析相关参数范围及光谱拟合参数 Table 1 Relevant parameters in the sensitivity analysis and parameters for reflection spectrum simulation of the leaves

确定光谱拟合参数区间和范围后, 利用PROSPECT模型拟合植物叶片反射率光谱, 光谱拟合时对应的欧式距离最大为0.008 9, 最小为0.006 4, 平均为0.007 5, 这表明光谱拟合度较高。部分蔬菜模拟光谱如图3所示。

	Figure Option View Download New Window

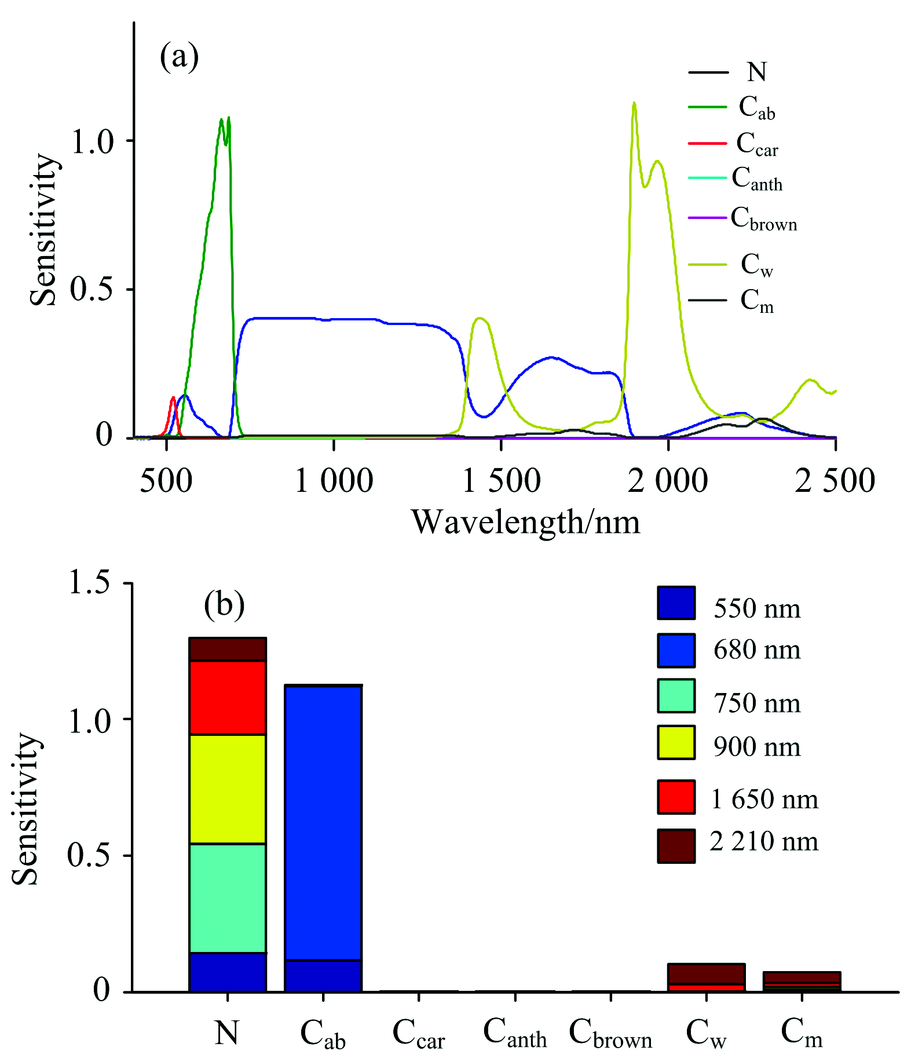

	图2 PROSPECT-D模型相关参数敏感性分析 (a): 敏感度分析曲线; (b): 敏感度分析柱状图Fig.2 Sensitivity analysis of the relative parameters in the PROSPECT-D model (a): Sensitivity analysis curve; (b): Sensitivity analysis histogram

	Figure Option View Download New Window

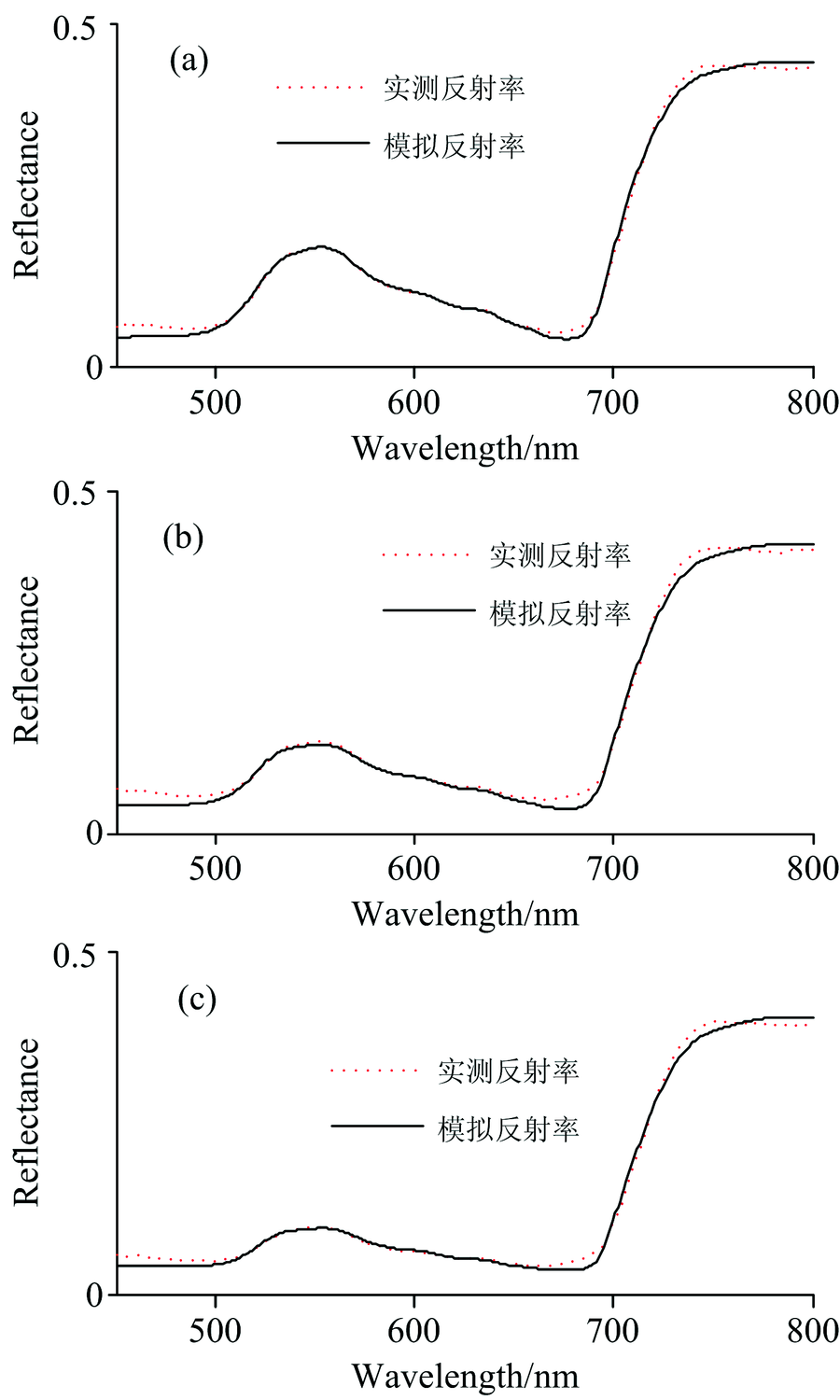

	图3 蔬菜叶片平均光谱拟合 (a): 绿色奶油蔬菜; (b): 罗马生菜平均光谱的模拟光谱; (c): 广府35菜心Fig.3 Simulated spectrum of average spectrum of vegetable leaves (a): Green cream vegetable; (b): Roman lettuce; (c): Guangfu 35 vegetable

2.3 叶绿素含量及SPAD值模拟结果

本文使用PROSPECT模型结合Nelder-Mead单纯形直接搜索算法拟合蔬菜叶片的平均反射率光谱。根据最优拟合结果, 由最佳输入参数获得叶片的叶绿素含量, 并由PROSPECT模型输出获得叶片的透过率光谱。拟合过程中, 不同植物或不同营养情况阶段的结构参数N差异较大。其中, 绿色奶油蔬菜结构参数平均值为2.0, 罗马蔬菜结构参数平均值为1.7, 绿色广府35菜心结构参数平均值为1.4。根据式(4), 利用透过率光谱即可计算植物叶片的SPAD值。

本文研究了反演叶绿素浓度与实测SPAD值的关系。如图4所示, 反演叶绿素浓度与实测SPAD值之间存在良好的线性关系, 其关系模型为: y=1.463 3x+16.374 3。反演叶绿素含量值与实测SPAD值之间的相关系数为0.927 1; 模型的决定系数为0.862, 均方根误差为2.11。

进一步研究了蔬菜叶片反演SPAD值与实测SPAD值的线性关系, 得到的关系模型为: y=0.986 9x-0.668 3。模拟SPAD值与实测SPAD值的相关系数为0.845 1; 模型的决定系数为0.714 3, 均方根误差为3.380 2。从图5可以看出, 反演SPAD值与实测SPAD值之间的线性关系较好。

	Figure Option View Download New Window

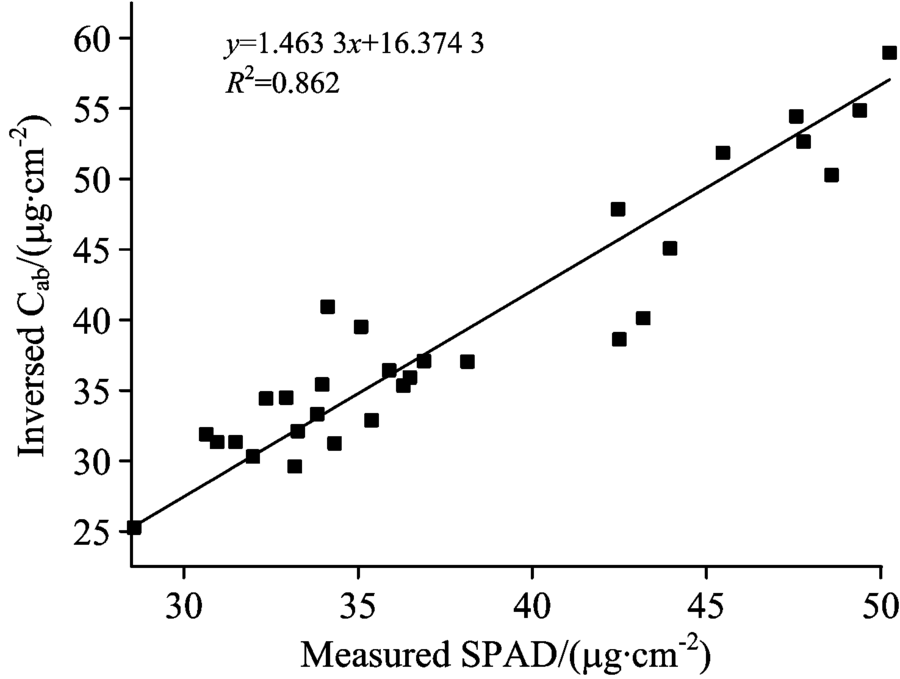

	图4 反演叶绿含量与实测SPAD值关系Fig.4 Relationship betweenthe inversed C_ab and measured SPAD

	Figure Option View Download New Window

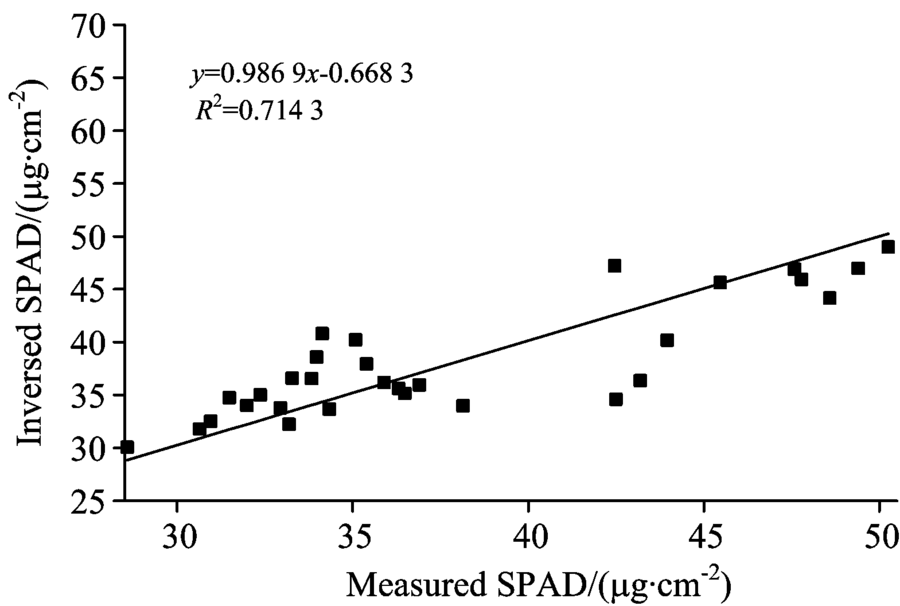

	图5 反演SPAD值与实测SPAD的关系Fig.5 Relationship between the inversed SPAD and the measured SPAD

3 结论

利用光学辐射传输模型PROSPECT模型, 以欧式距离作为评价函数, 拟合蔬菜叶片反射率光谱, 反演叶绿素含量和SPAD值。根据拟合结果, 利用该模型得到的反演叶绿素含量、反演SPAD值分别与实测SPAD值具有较好的线性关系。 (1)前者关系模型为: y=1.463 3x+16.374 3, 相关系数为0.927 1, 模型的决定系数为0.862, 均方根误差为2.11; (2)反演SPAD值与实测SPAD值关系模型为: y=0.986 9x-0.668 3, 两者相关系数为0.845 1, 模型的决定系数为0.714 3, 均方根误差为3.380 2。以上结论表明, 本文所提出的基于PROSPECT模型的蔬菜叶片叶绿素含量和SPAD值反演方法, 具有实时、快速、无损、定量的特点, 可推广至其他植物的叶绿素测量和实时监测, 为变量施肥、精准种植提供可靠的数据支持。

参考文献

文献列表

[1]	Wang Heng, Qian Xiangjie, Zhang Lan, et al. Frontiers in Plant Science, 2018, 9. [本文引用:1]
[2]	Dimitre A Ivanov, Mark A Bernards. Planta, 2016, 243(1): 263. [本文引用:1]
[3]	CUI Jian-sheng, LÜ Peng-yi(崔建升, 吕鹏翼). Physical Testing and Chemical Analysis Part B: Chemical Analysis(理化检验·化学分册), 2015, 51(1): 105. [本文引用:1]
[4]	Hu Jing, Li Chenxiao, Wen Yifang, et al. IOP Conference Series: Earth and Environmental Science, 2018, 108(2). [本文引用:1]
[5]	DING Yong-jun, LI Min-zan, AN Deng-kui, et al(丁永军, 李民赞, 安登奎, 等). Transactions of the Chinese Society of Agricultural Engineering(农业工程学报), 2011, 27(5): 244. [本文引用:1]
[6]	Li Dong, Cheng Tao, Kai Zhou, et al. ISPRS Journal of Photogrammetry and Remote Sensing, 2017, 129. [本文引用:1]
[7]	Lu Xia, Peng Hongchun. Journal of the Indian Society of Remote Sensing, 2015, 43(1): 109. [本文引用:1]
[8]	Frédéric Baret, Vern C Vand erbilt, Michael D Steven, et al. Remote Sensing of Environment, 1994, 48: 253. [本文引用:1]
[9]	Jiang Jingyi, Comar Alexis, Burger Philippe, et al. Plant Methods, 2018, 14. [本文引用:1]
[10]	Sun Jia, Shi Shuo, Yang Jian, et al. Remote Sensing of Environment, 2018, 212. [本文引用:1]
[11]	SUN Jun, JING Xia-ming, MAO Han-ping, et al(孙俊, 金夏明, 毛罕平, 等). Transactions of the Chinese Society of Agricultural Engineering(农业工程报), 2014, 30(10): 167. [本文引用:1]
[12]	Féret J-B, Gitelson A A, Noble S D, et al. Remote Sensing of Environment, 2017, 193. [本文引用:1]
[13]	Gu Chengyan, Du Huaqiang, Mao Fangjie, etal. International Journal of Remote Sensing, 2016, 37(22): 5270. [本文引用:1]
[14]	Asim Banskota, Shawn P Serbin, Rand olph H Wynne, et al. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2015, 8(6): 3147. [本文引用:1]
[15]	SU Hong-sheng, YIN Kai-le(苏宏升, 殷凯乐). Computer Engineering and Applications(计算机工程与应用), 2016, 52(24): 50. [本文引用:1]
[16]	YANG Ren-jie, YANG Yan-rong, DONG Gui-mei, et al(杨仁杰, 杨延荣, 董桂梅, 等). Spectroscopy and Spectral Analysis(光谱学与光谱分析), 2014, 34(8): 2098. [本文引用:1]
[17]	Casa R, et al. The Journal of Agricultural Science, 2015, 153(5): 876. [本文引用:1]
[18]	Angela De Santis, Emilio Chuvieco, Patrick J Vaughan. Remote Sensing of Environment, 2009, 113(1): 126. [本文引用:1]
[19]	GU Cheng-yan, DU Hua-qiang, ZHOU Guo-mo, et al(谷成燕, 杜华强, 周国模, 等). Chinese Journal of Applied Ecology, 2013, 24(8): 2248. [本文引用:1]
